our technology
product machining result

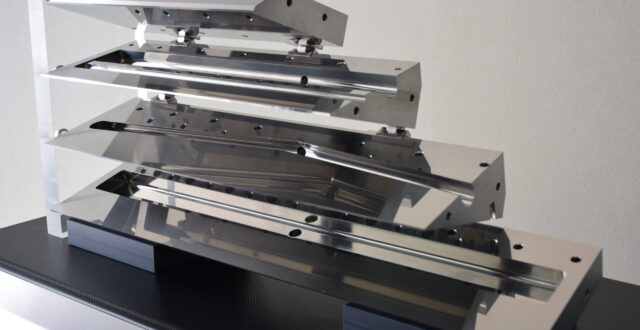

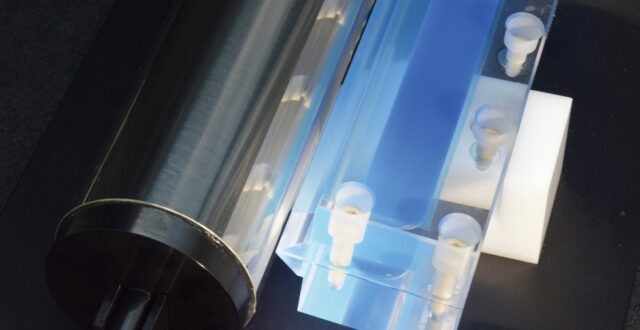

  • 3800mm die

    Die coater used in fields such as lithium ion batteries, films, and liquid crystals. Str...

  • Double-side polishing of large LBO single crystal substrate. (100x100x1.5mm)

    We succeeded in polishing the largest LBO single crystal substrate in the world for LFEX(...

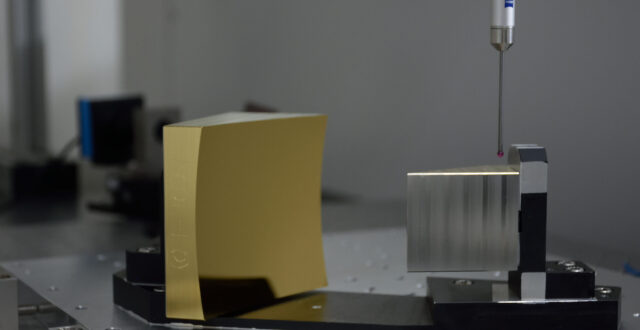

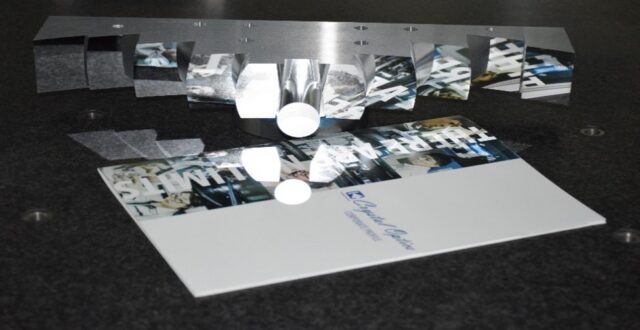

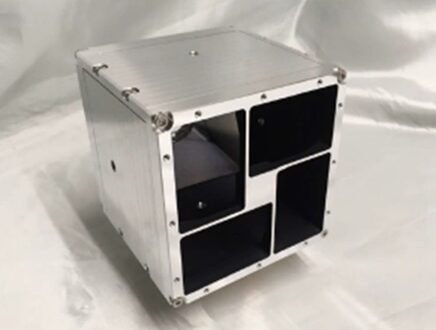

  • Trial spectrometer unit

    Trial mirror production of the image slice type near infrared instrument, next-generation...

  • Mid-infrared instrument MIMIZUKU

    Production of infrared telescope observation equipment, Mid-infrared instrument MIMIZUKU

FACHILITY

Large-scale rapping machine

EJW-300F-GNC

Lapping surface plate φ3200㎜
The machine can improve the flatness of the surface of Large parts

CNC Double Column Type Surface Grinding Machine

KSL-F2550

CNC Double Column Type Surface Grinding Machine(KSL-F25)
Size of table working space 5000×2500mm

Extra Large 3D Coordinate Measuring Machines

MMZ-G306020

Measuring range X:3000 Y:6000 Z:2000
Extra Large 3D Coordinate Measuring Machine, top-level measuring
accuracy in the world.

Super precision mording grinder

SGC-408S4-N3

Controlling of NC program is able to shape griding , like crowing shape, and so on.

Ultra precision diamond-turning machine, Nanoform

Nanoform700ultra

Nanoform 700-ultra enable to cut large mirror and ultra precision by Slow Tool Servo (STS).

Ultra precision coordinate measuring machine(CMM)

UA3P-4

The machine is highly precise in a plane or a non-plane of symmetry and can acquire data.

Large gate type 5 faces processing machine.

MVR45

cloumn gate width 4250mm. Ultra-large gate type 5 faces processing machine.
Corresponding width 3500mm large metal parts.

Large Aperture Interferometer System(12")

Verifire Atz

High-grade Metrology, having high resolution and less artifact noises

Magneto-Rheological Finishing

Q-flex300

High Precision, Freeform polishing capabilities.
